Your Partner for Reliable Scales & Weighing Systems
Precision Weighing Solutions
At Siouxland Scale Service, we offer a full suite of industry-leading products — from floor and bench scales to truck, rail, and precision systems — designed to deliver accuracy, durability, and performance. Whether you’re managing freight traffic, batching concrete, or performing laboratory measurements, our solutions are built for real-world conditions and backed by expert service and support.
Truck Scales
When your business demands precision for large-vehicle loads, our truck scale systems deliver. Designed to weigh entire trucks, trailers or combinations with ease, these platforms ensure accurate gross weight—supporting everything from billing and inventory to regulatory compliance and safety. Built for durability and long-term performance, they feature sturdy concrete or steel decks, high-quality load cells, and advanced indicators for seamless operation

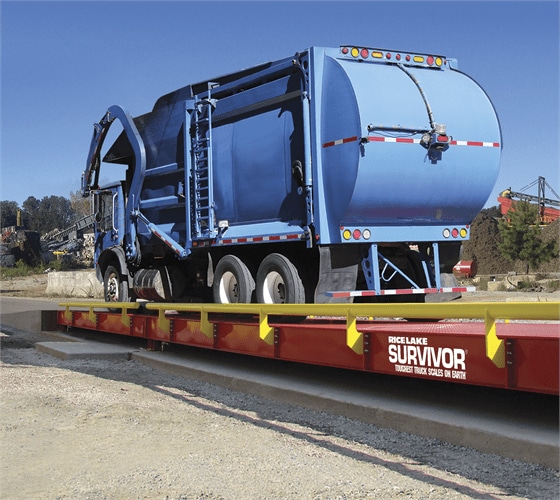

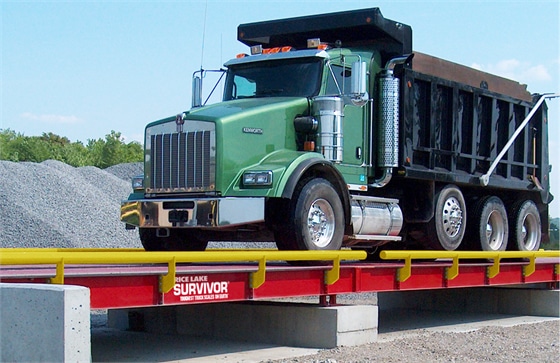

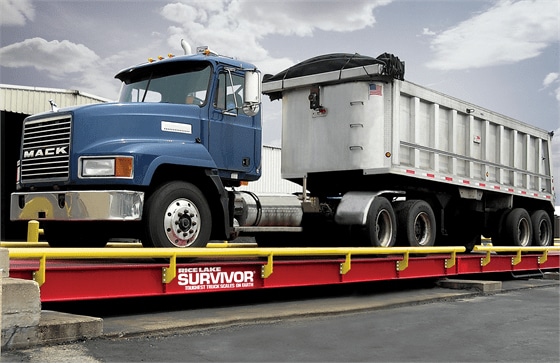

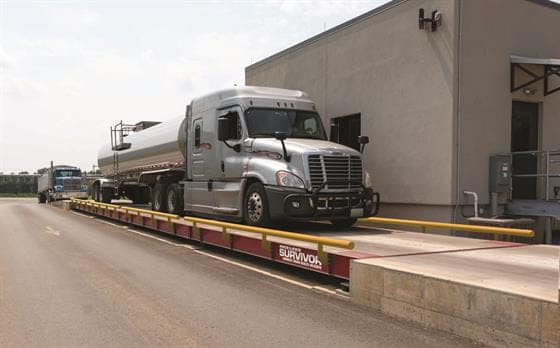

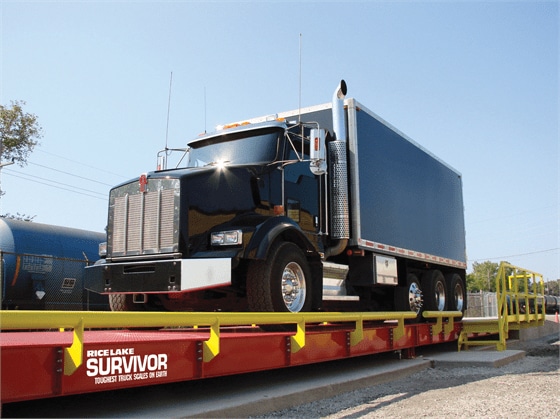

SURVIVOR® OTR Steel Deck Truck Scale
For applications where steel is preferred or downtime is critical, choose the SURVIVOR® OTR Steel Deck. Operational within a day, the easy-to-install SURVIVOR OTR Steel Deck sets the standard for truck scale design and performance, keeping downtime to a minimum. Tightly spaced wide-flange I-beams form the industry’s strongest weighbridge design, weighing as many as 250 trucks per day for 25 years without a trace of weighbridge fatigue.

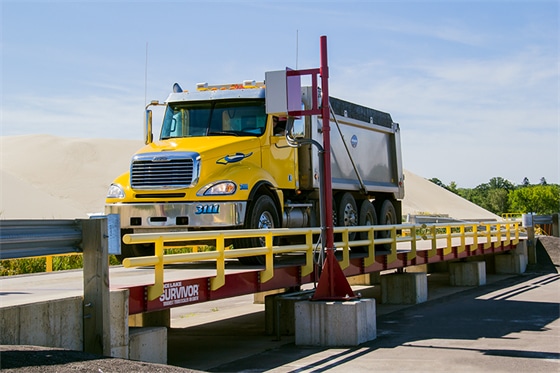

SURVIVOR® OTR Concrete Deck Truck Scale
Durable Concrete Deck Truck Scale
The SURVIVOR OTR concrete deck truck scale provides reliable traction in wet or icy weather conditions, and resists corrosion. A concrete deck improves load distribution to withstand forceful movements caused by heavy trucks entering and exiting the weighbridge. Maintenance is also simplified with boltless, top access to load cells and junction box. The rodent-proof conduit-enclosed cables eliminate pest damage.
Reliable Concrete Deck Design
The design of the SURVIVOR concrete deck ensures safety and accuracy with improved load cell distribution. Six inches of concrete above the weighbridge’s neutral axis is supported by the six-inch steel deck substructure. The substructure is composed of galvanized steel sheets and I-beams to increase strength throughout each module.

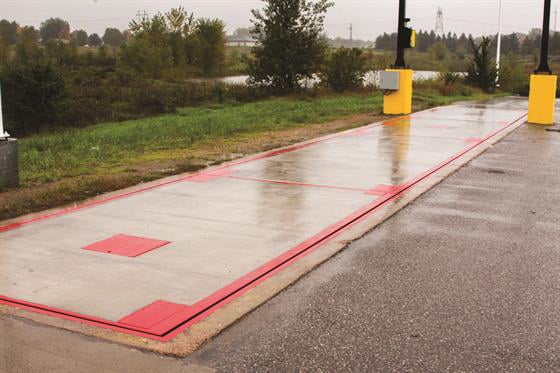

SURVIVOR® PT Series Truck Scale
The SURVIVOR PT Series truck scale features a manhole and pit access to load cells, making it a perfect solution for pit foundation applications. The durable design includes multiple wide flange I-beams and steel cross beams to minimize deflection and lengthen scale life. This NTEP certified truck scale features 8.5 inches of reinforced concrete poured in one continuous slab on-site to increase weighbridge strength.
- 75,000 lb capacity load cells and pre-assembled G-Force™ mounts
- Junction box(es) appropriate for number of load cells utilized
- NTEP Certified 98-011
- 120,000 lb Concentrated Load Capacity (CLC)
- 120,000 lb Dual Tandem Axle (DTA)
- Up to 270,000 lb full scale capacity
- 6 in reinforced concrete deck.
- One 2 ft x 2 ft square manhole opening
- Up to 42 ft section span
- Three standard widths: 10 ft, 11 ft and 12 ft (available up to 14 ft, NTEP Certified)
- Options
- Steel deck
- 20 lb division
- 18-inch main beams for increased pit clearance
- Surface mounted junction box
- 3/8, 1/2, or 1-inch or 2-inch steel deck plate upgrade
- Grain dump
- Stainless steel load cells
- Tapered links and radius blocks
- Stainless steel suspension hardware
- Galvanized weighbridge and suspension hardware
- Manhole integrated ladder
- Top access junction box
- Corrosion-resistant coating
- Dolly down plate
- iQUBE2® digital diagnostic junction box

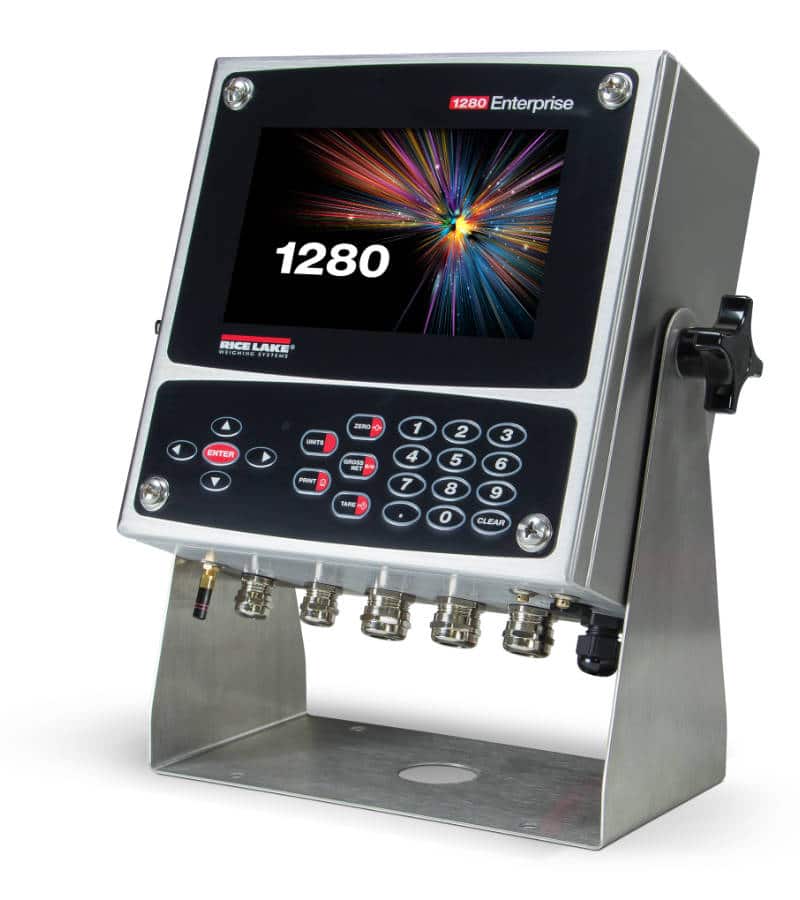

- iQUBE2 and 1280 Enterprise Series programmable weight indicator bundle
- iQUBE2 and 920i® Series programmable weight indicator bundle
Automated Truck Scales

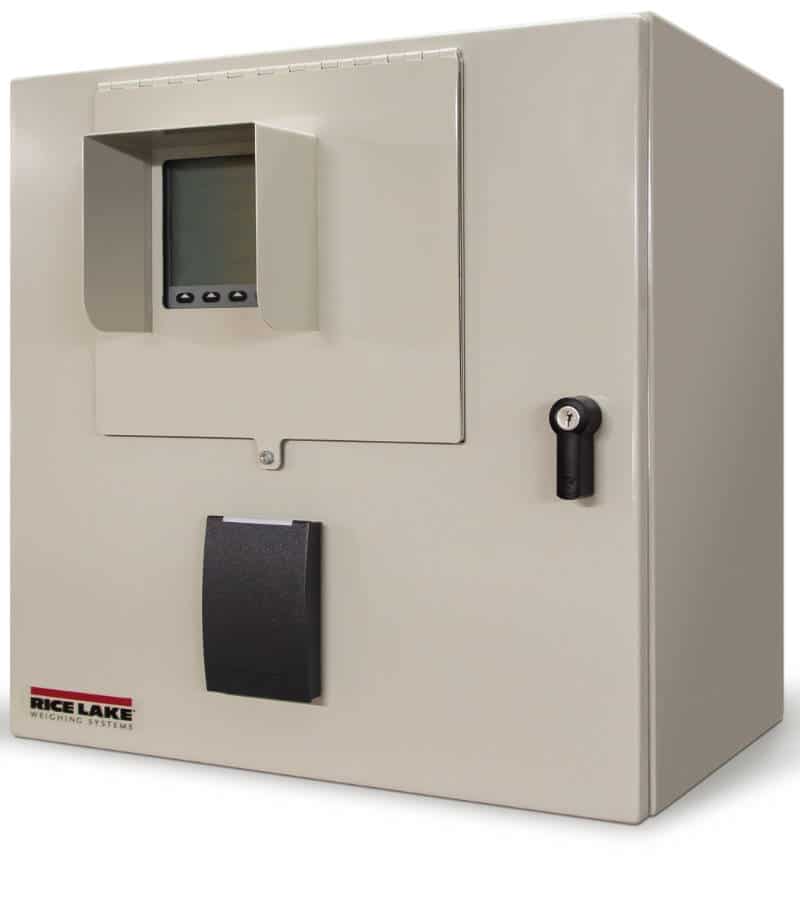

Automated Ticketing Kiosks
Rice Lake’s powerful Automated Ticketing Kiosk System increases efficiencies and optimizes the flow of trucks in and out of your plant. This unique solution virtually eliminates transaction errors by automating everything from the point of sale to account management.
With a user-friendly interface, these kiosks seamlessly integrate with any size facility’s central office and accounting systems. Built with rugged NEMA 4 steel for long-lasting durability, this unique solution supports automatic identification of trucks and fully automated or semi-unattended ticketing.
Weigh/Check In Kiosk
- 920i® HMI with sun shield
- Four serial ports
- 120 VAC
- Two option slots for 920i option cards
Weigh Out/Printer Kiosk
- 920i® HMI with sun shield
- Six serial ports
- 1 MB database memory
- Two additional expansion slots
- Slide door access to ticket
- 8 in paper roll
- Operator prompting
- Formatable tickets
- Traffic light control
- Transmits weight to remote display
- Direct thermal kiosk printer
Weigh Out/Printer Kiosk Options:
- Ethernet TCP/IP (wired and WiFi options available)
- Single or dual channel A/D cards
- RFID reader
- Currency accepter (U.S. currency only)
- Internal heater
- Gate control
- Loop detector output
Consult for the following options:
- Stainless steel enclosure
- RF tags/antenna for truck IDs
- Bar code badge scanner
- 230 VAC
- Numeric keypad
- HID card reader

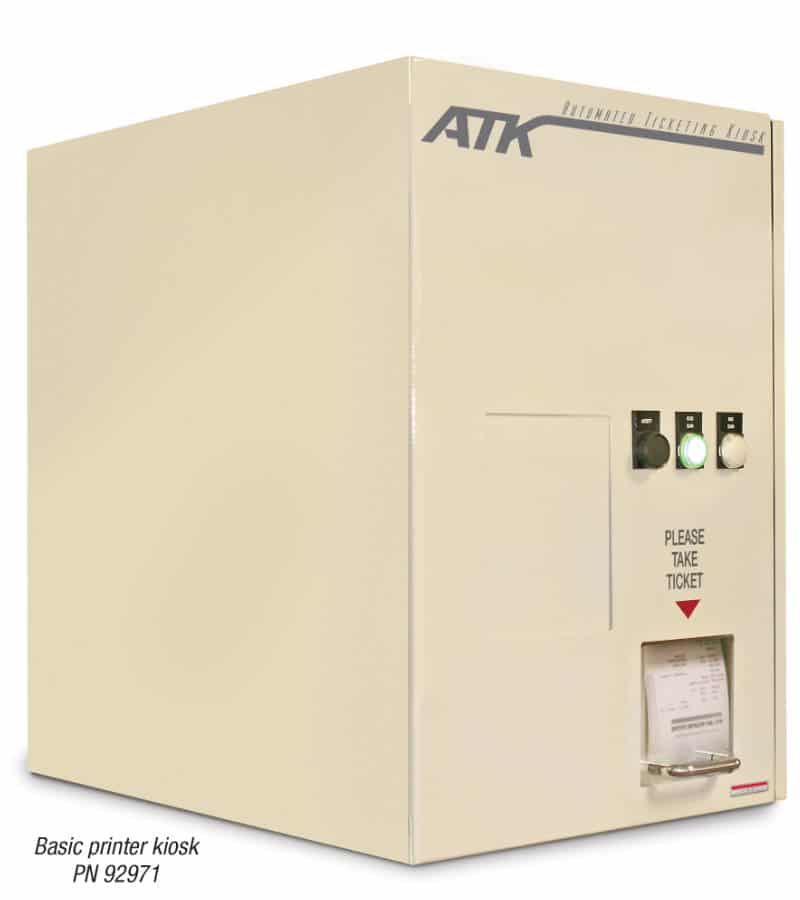

Printer Kiosks
Rice Lake’s Automated Kiosk Systems boost efficiency and optimize the flow of traffic in and out of your facility with fully automated or semi-unattended ticketing. With ticketing kiosks, drivers can check-in, weigh-in and -out, and print tickets without ever exiting the truck, increasing safety for your drivers. By automating everything from point-of-sale to account management, this system virtually eliminates transaction errors. Rice Lake’s kiosks can integrate with the central office and accounting systems, no matter the size. The user-friendly interface is housed in a rugged, painted mild or stainless steel enclosure for long-lasting use. Automated kiosks are ideal for a variety of applications, including ports, transfer stations, landfills, warehouses, feed mills, grain terminals, chemical plants, construction sites, load-out facilities and more.
Direct Thermal Printer Kiosk
- Custom America VKP80ii
- Slide door access to ticket
- 8 in paper roll
Printer Kiosk with Intercom
- Digital Acoustics intercom substation
Printer Kiosk with Ethernet Intercom
- Digital Acoustics Ethernet TCP/IP intercom substation
Thermal-transfer Printer Kiosk
- Thermal transfer ticket printer kiosk
- Painted mild steel enclosure
- Slide door access to ticket
- Zinc-plated 3/4-inch NPT conduit hubs
Bench Scales

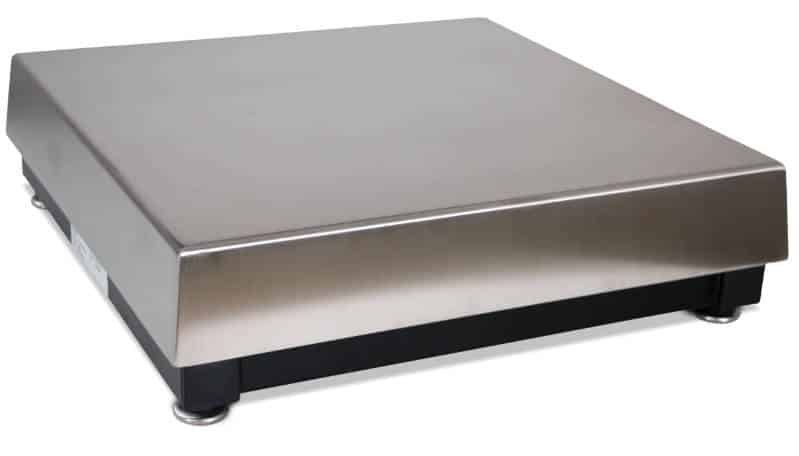

BenchMark™ Mild Steel Bench Scale
Ideal for dry environments, the BenchMark MS mild steel bench scale has a heavy-duty construction that provides ultimate durability, sensitivity and long life for a variety of weighing. Finished with a painted, mild steel tubular frame and 304 stainless steel cover, this model features aluminum, environmentally sealed load cells. Five standard platform sizes offer a wide variety of capacities. Custom platform sizes and capacities are available.
- Painted mild steel frame with 304 stainless steel cover
- Base design isolates load cell from overloads and shock loads for added durability
- Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

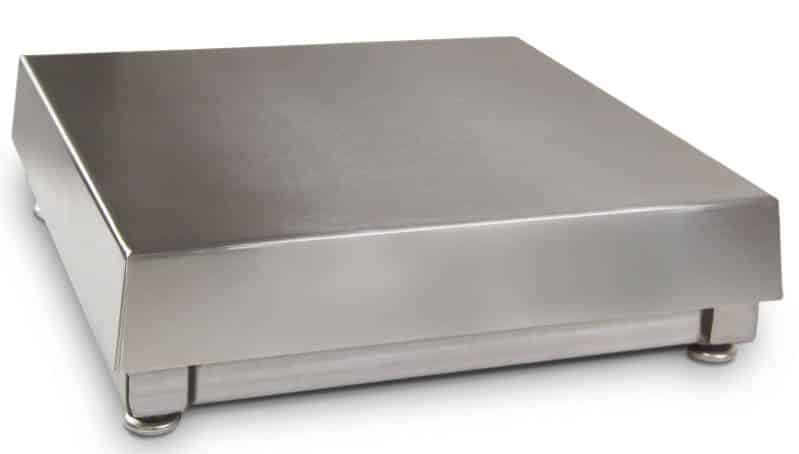

BenchMark™ Stainless Steel Bench Scale
The BenchMark SS stainless steel bench scale is ideal for corrosive, dry environments. This benchtop scale is constructed with superior craftsmanship, yielding a tough scale that performs accurately despite industrial-grade challenges. Custom sizes are available to meet unique application needs for a perfect fit in any site.
- 304 stainless steel frame and cover
- Base design isolates load cell from overloads and shock loads for added durability
- Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

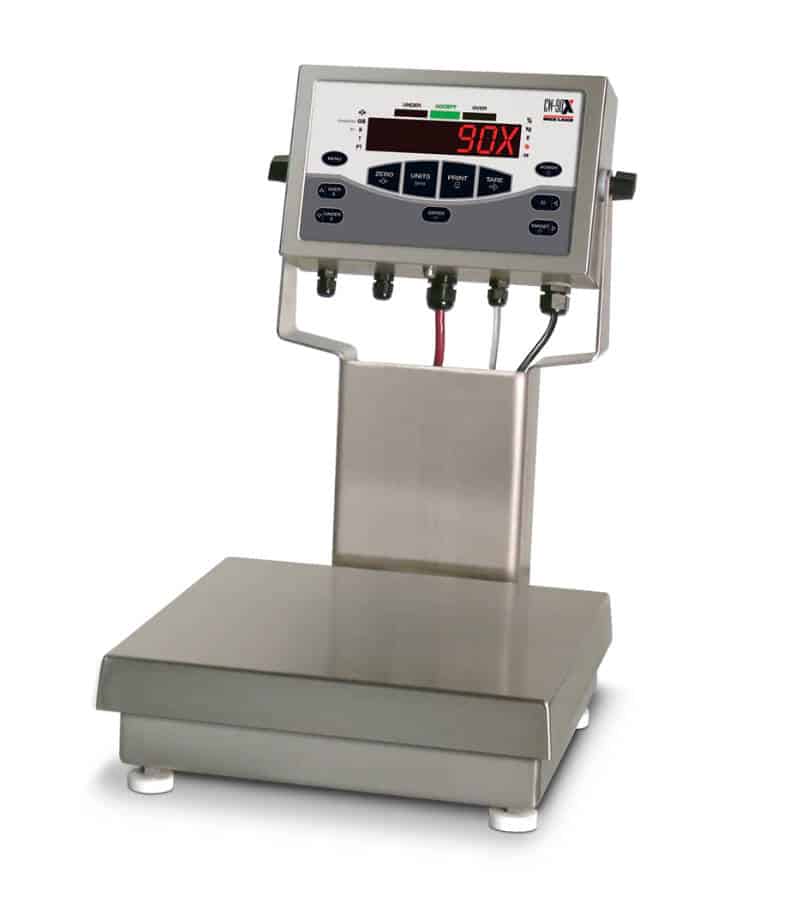

CW-90 Over/Under Checkweigher
Rice Lake’s CW-90 checkweigher is designed to help speed up your weighing process and reduce production downtime, two critical factors to your company’s bottom line. Ease of use, real-time data collection, and rugged stainless steel construction make the CW-90 the equipment of choice for operators, quality control and maintenance departments. The CW-90 is competitively priced for all light industrial settings.
Easy to Configure
The configuration menu of the CW-90 is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator’s needs. The CW-90 will store detailed information for up to 50 separate IDs, allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.
Simple to Maintain
The CW-90 has kept things simple to meet the needs of today’s lean manufacturers. Use this checkweigher by easily watching the over/under lights. Program the unit with specified weight limits and a red light will display an underweight condition, yellow for over, and green when a target weight is reached. Rice Lake’s CW-90 will help error-proof your production process and achieve your productivity goals
- Membrane keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, 0-9, CLEAR, DECIMAL, ENTER, MENU, POWER
- 304 stainless steel, IP66 rated indicator
- PreVentTM breather vent
- Storage for up to 50 IDs
- Unit of Measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
- High-intensity LED display
- Battery backed time and date
- Two full duplex RS-232 serial ports
- Configurable print formats
- Audit trail tracking
- Optional communications: Ethernet, USB or Fiber Optic
- Four configurable Digital I/O
- Reflash memory to upgrade firmware
- Auto print capability
- Scale:
Aluminum, environmentally sealed load cell
304 stainless steel
Five point overload protection

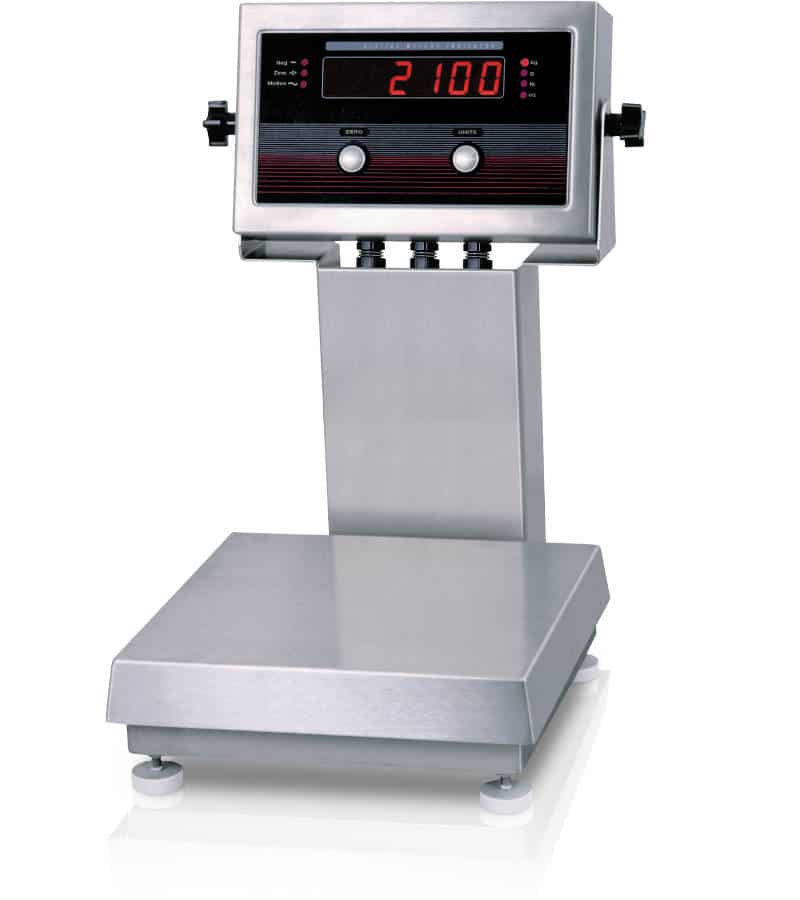

IQ Plus® 2100 Digital Bench Scale
The IQ plus® 2100 digital bench scale is ideal for use in general purpose weighing, portioning, and a variety of food processing applications. Stainless steel buttons repel messy ingredient spills and damage by knife point, while the NEMA Type 4X stainless steel indicator enclosure stands up to frequent washdowns. Standard overload stops protect the base during heavy use. All operations are controlled through two buttons—zero and units. Push-button zero and a full range of units, including lb/oz, offer the flexibility needed for a wide variety of applications.

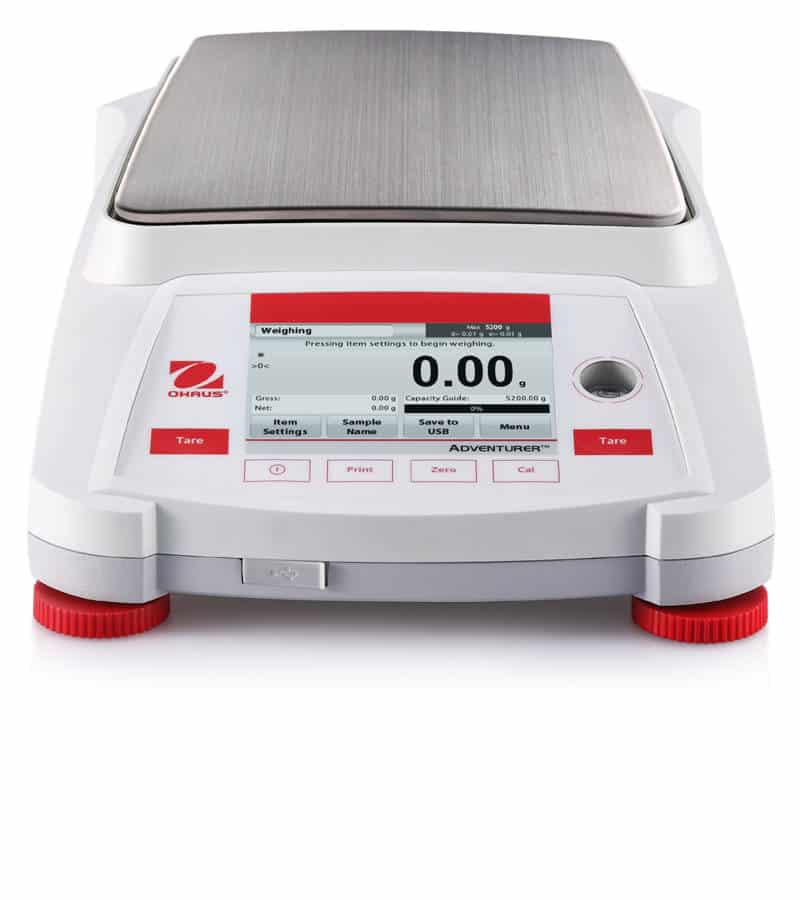

Ohaus Adventurer Precision Series
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer Series precision balance incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in its class.
- Stable, accurate and fast operation, ensuring optimal weighing results
- Color touchscreen with 4.3 in (109 mm) display size
- Dual USB ports and RS-232 provide connectivity options
- Space-saving, top-mounted draft shield on analytical models
- Real time clock with GLP/GMP data
- Below minimum sample weight indication with minimum weight feature
- AutoCal™
Bulkweighing Systems

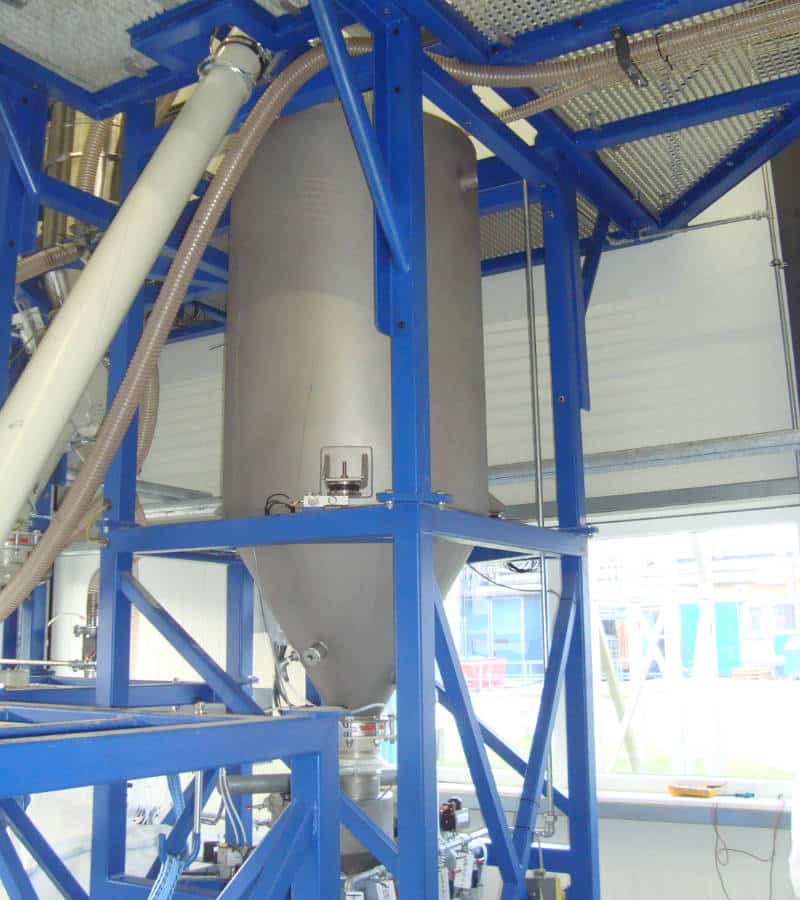

Bulk Weighing System
If your bulkweigher is broke and you have 100 rail cars to load, who are you going to call? Siouxland Scale Service.
The Service Department at Siouxland Scale Service realizes the importance of this type of weighing and we have trained our service technicians on bulkweighers as well as stocked parts for all major brands of bulkweighers so that we can take care of any emergency you may have.
If you’ve had your bulkweigher system a long time and it’s taking a long time to load rail cars, Siouxland Scale Service can visit your site and evaluate your system to give you recommendations on bulkweigher upgrades that will increase your accuracy and loading times.
Rice Lake Weighing Systems offers a wide range of dynamic weighing systems to meet accuracy needs in a variety of industries, no matter what bulk material is being handled. Belt scales, or weigh belts, are one of the most efficient ways to transfer and monitor bulk materials. Additional options include screw weigh systems, flowmeters, loss-in-weight systems and bulk weighers.
Whether weighing produce on a belt scale during harvest or blending dry materials with a flow meter, Rice Lake’s experts can help you find the right solution. Rice Lake offers 24/7/365 support and a complete line of bulk material scale systems with support facilities around the world.
Organizations with existing bulk weighing equipment can also work directly with a Rice Lake expert to discuss replacements for outdated or discontinued equipment from other manufacturers.
Concrete Batch Controller

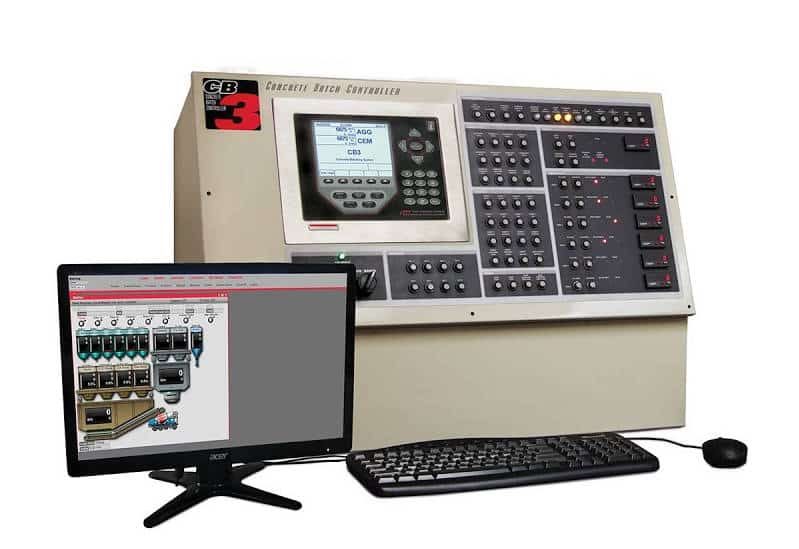

CB-3 Concrete Batch Controller
The CB-3 concrete batching control system is fast, efficient and ideal for ready-mix and block plants. It is capable of controlling portable plants, stack-up plants, central mix, dry batch and pre-cast plants. From weighing raw material to automatic ticket printing and detailed reports, your entire operation is centrally controlled with the CB-3— all with the power of an industrial PC.
Offering the ability to view multiple windows at once, the PC interface offers expanded possibilities to save time and optimize efficiency. With the same panel configuration, the CB-3 is an ideal upgrade to existing CB-2 systems, or other concrete batch controllers, taking your plant to the next level.
- One aggregate and one cement scale, water scale is standard for P/N 177747
- Manual override controls
- Customized batch ticket printing
- Web server
- 128 GB data storage
- Material usage by day/week/month/year and inventory on-hand with reporting
- Automatic aeration control for cement silos and weigh hoppers
- Multiple freefall values per material
- Split batching for loads larger than plant capacity with pre-weighing next batch
- Automatic dust collection outputs
- Order based batching
- Units: US standard or metric (SI) operation
- Aggregate conveyor
- Loss-in-weight aggregate dispensing
- Four dual or eight single speed aggregates
- Four dual or eight single speed cements
- Weighed water with water reservoir (P/N 177747)
- Up to eight auxiliary manual controls
- Mixer controls for central mix block or precast plants
- Ethernet TCP/IP
- Up to six admixtures
- Multi-user interface
- Dual moisture probe interface supports 4-20 mA
- Options:
- Monitor
Floor Scales

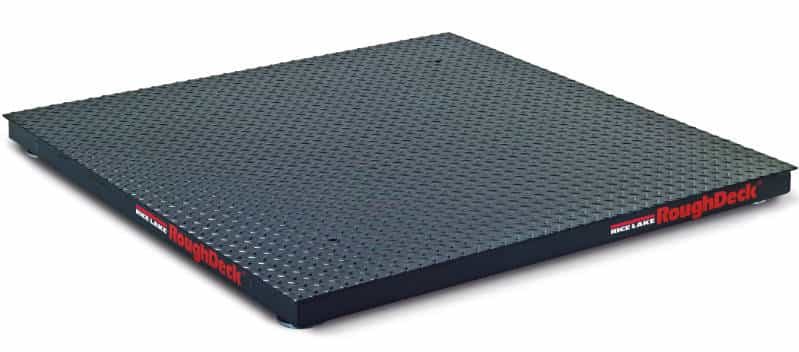

RoughDeck HP
The RoughDeck HP’s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 10,000 pound capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.
The RoughDeck HP’s NEMA Type 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.
- Heavy-duty industrial design
- Structural steel channel frame
- Four NTEP Certified alloy steel, shear beam load cells
- 20ft SURVIVOR® EL147HE hostile environment load cell cable
- TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
- Side-access junction box
- Rugged diamond deck safety treadplate
- 4 adjustable stainless steel SUREFOOT™ support feet
- 4 corner overload stops (Canadian versions only)
- Level bubble (Canadian versions only)

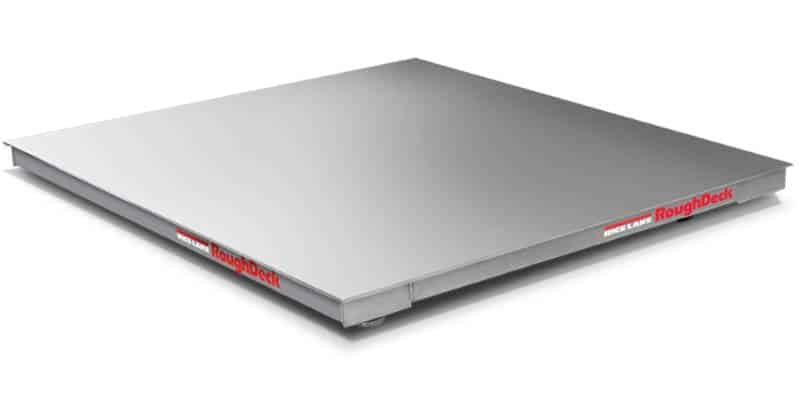

RoughDeck® HE Hostile Environment Floor Scale
The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate. The RoughDeck HE comes standard with four stainless steel, IP67 welded-seal, shear beam load cells, four stainless steel support feet, a stainless steel NEMA Type 4X TuffSeal summing junction box and EL147HE hostile environment load cell cable.
The stainless steel channel frame provides added protection by enclosing load cell cable and load cells, yet provides easy access for installation and service. The NEMA Type 4X summing TuffSeal junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronic connections away from moisture and chemicals.
- Rugged washdown design
- 304 stainless steel construction
- Rigid 304 stainless steel channel frame
- Four stainless steel, welded-seal, IP67 shear beam load cells
- 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
- Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting
- Load cells protected on all four sides
- Smooth stainless steel deck

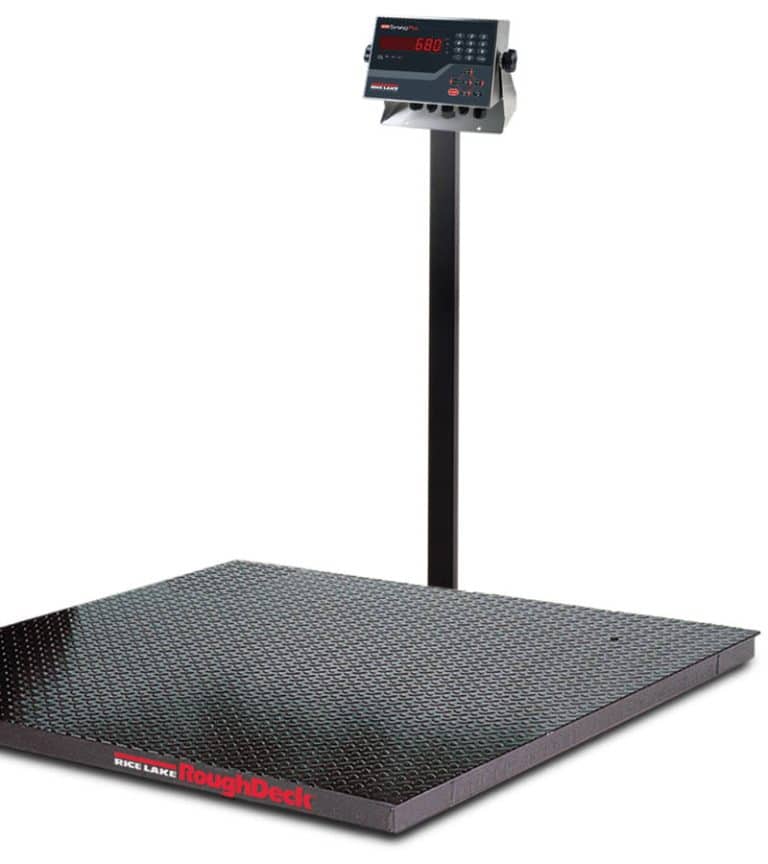

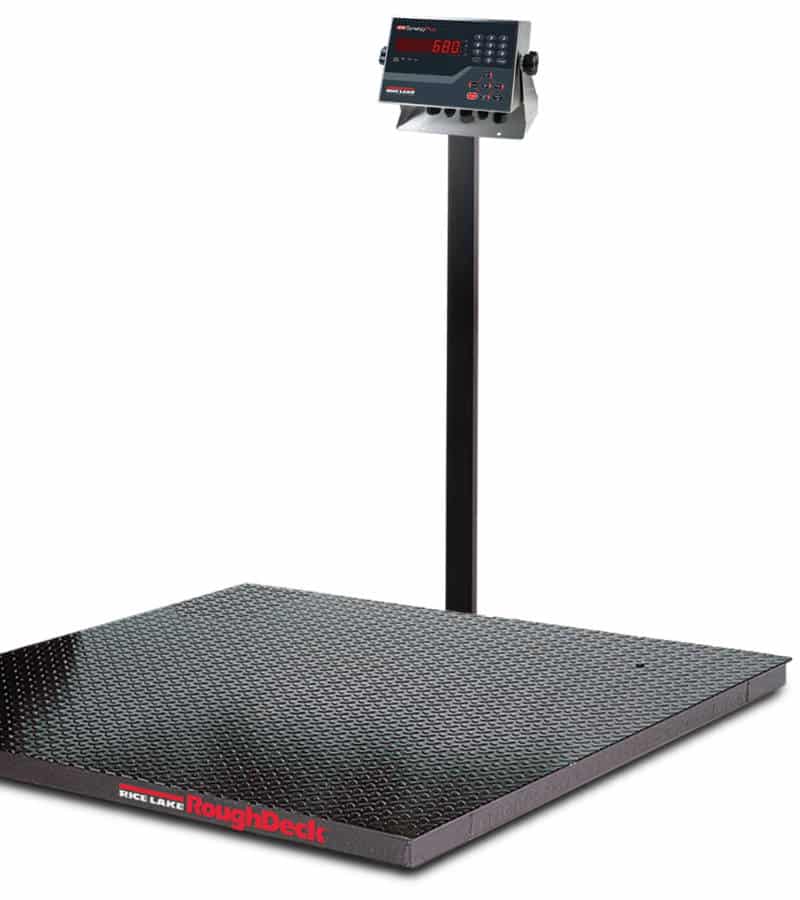

RoughDeck® Rough-n-Ready Floor Scale System
The RoughDeck® Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4-foot RoughDeck floor scale with one of five quality Rice Lake indicators (Shown with the 680). Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.
Package includes:
- RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale
- 20 ft of hostile environment load cell cable
- Quick disconnect and indicator.
- Package factory-calibrated for 5,000 divisions

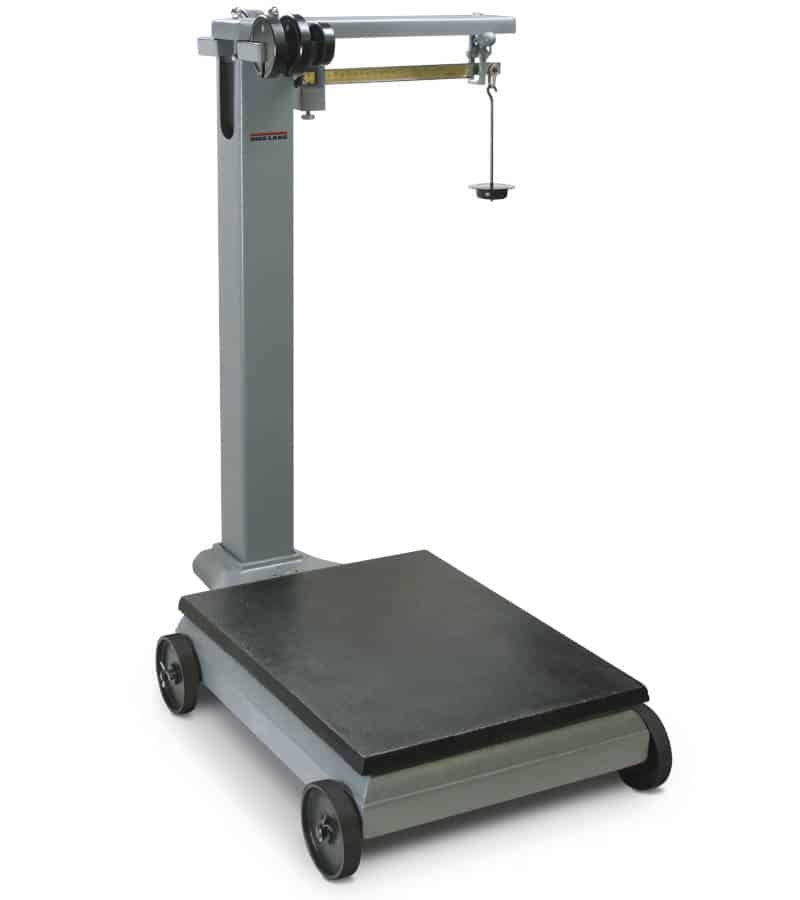

RL1200 Mechanical Portable Beam Scale
Portable beam scales are well known for time-tested reliability and performance, and Rice Lake’s RL1200 Series is designed to complement these demands. For agriculture, warehousing, or general industrial weighing, these cost-effective, cast-iron designs deliver the ultimate in portability and durability.
Well suited to intrinsically safe applications or areas without access to electricity, this all-mechanical design is available in either metric or avoirdupois (lb). The avoirdupois model offers a capacity of 1,000 pounds and is also NTEP Certified, making it suitable for a wide range of commercial and Legal for Trade applications.
- NTEP Certified
- Cast iron construction
- 1,000 lb or 500 kg capacity models available
- Locking screw knob on poise
- Slotted cast iron counterpoise weights, marked to scale capacity
- Heavy-duty wheels for portability (wheels are not rated for IS environment)
- Weights and hanger
- Nickel plated steel beam with engraved brass insert
Precision Balances

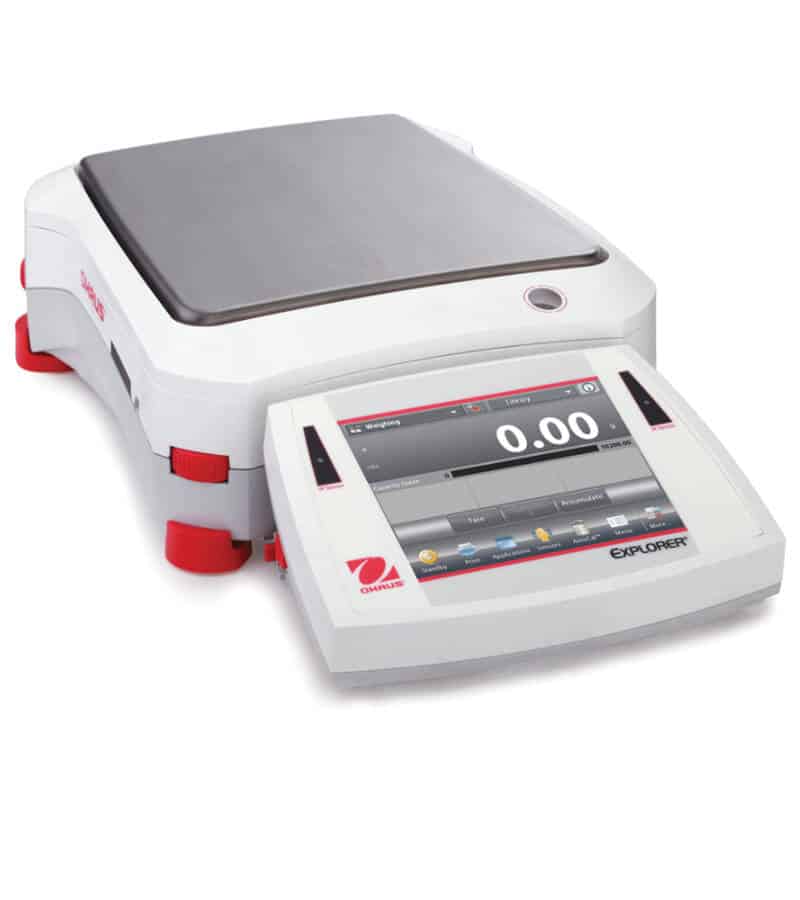

Ohaus Explorer® Precision Series
The Ohaus Explorer™ features SmarText™ 2.0, the user-friendly, application-based, graphical software platform in concert with a redesigned antistatic draftshield, enhanced weighing performance, and a flexible modular display that detaches from the weighing base. Ingeniously striking a balance between cutting-edge technology and functional design, the Explorer delivers accurate performance that will improve efficiency in the lab.
- Capacities from 220 g to 10.2 kg with Readability to 0.001 g
- Large, 5.7 full-color touchscreen display with intuitive set up and application software
- AutoCal™ automatic internal calibration for optimized weighing performance
- 14 application modes, 11 weighing units and 5 display languages for a wide variety of applications
- Four programmable touchless sensors for hands-free operation
- 0.001 g models feature frameless draftshield with anti-static glass, flip-top and large side entry doors on top-mounted bearings
- Optional: External calibration models

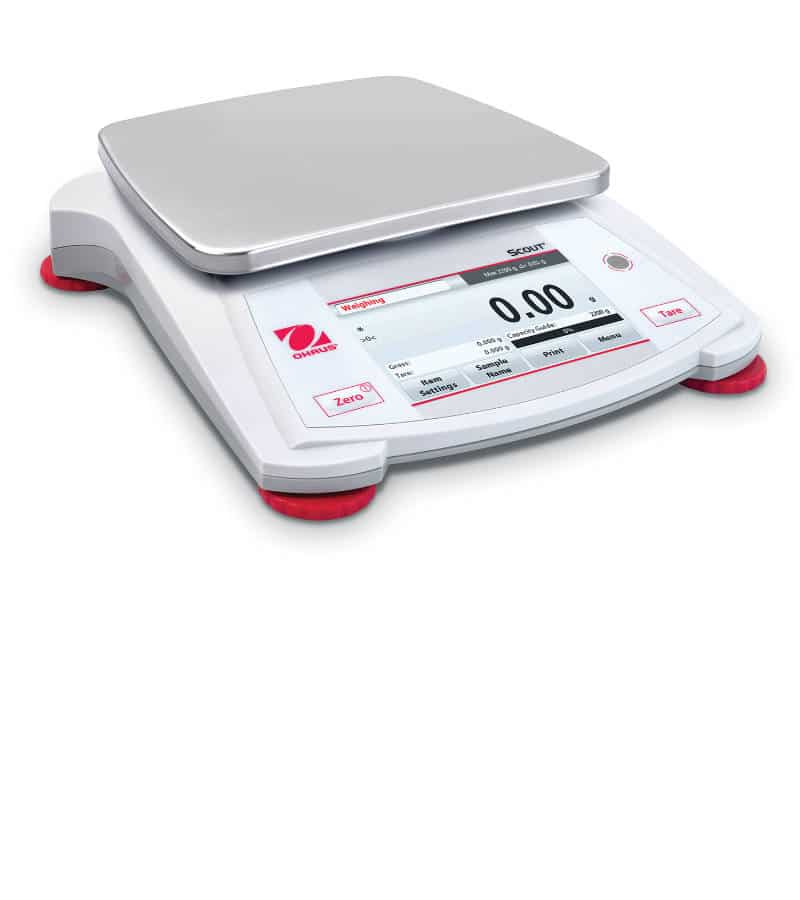

Ohaus Scout®
Ideal for laboratory and industrial applications, the OHAUS Scout comes in a slim, stackable design with large backlit LCD. Features include superior overload protection, multiple weighing units and application modes. Geared for high performance in your facility with fast stabilization time and high resolution weighing results, these portable balances set a new standard in laboratory and industrial weighing.
- ABS housing and stainless steel pan
- Display type (SPX): backlit LCD, six-digit, seven-segment with white LED backlight
- Display type (STX): full-color touchscreen WQVGA graphic LCD
- Battery or AC operation (AC adaptor included)

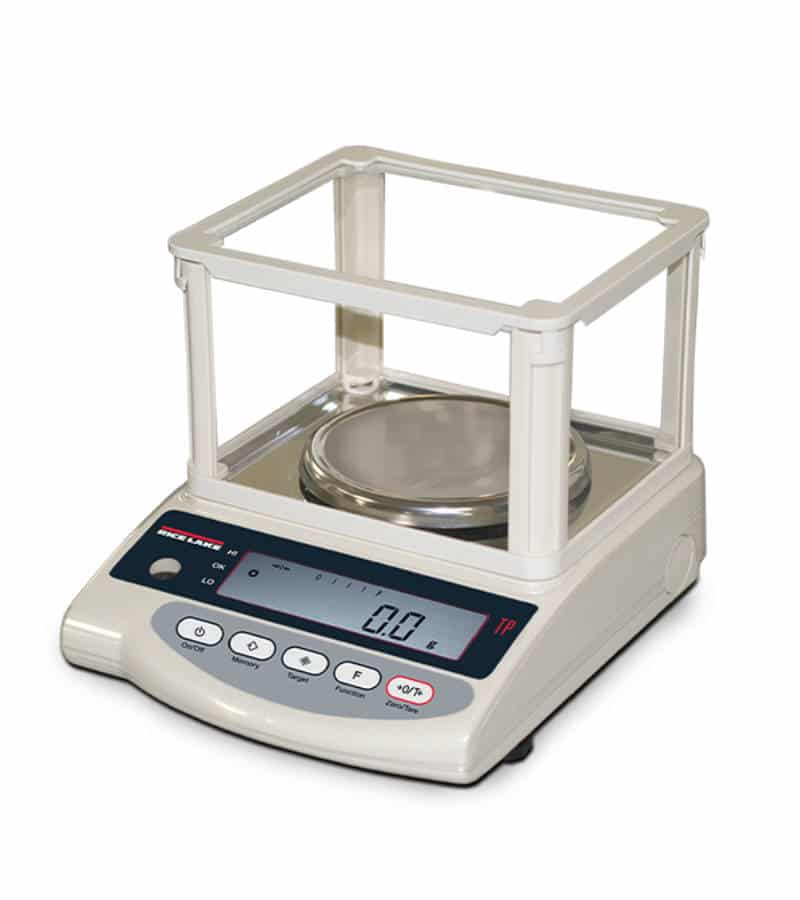

Rice Lake TP Series Tuning Fork Balance
The simple, straightforward design of Rice Lake’s TP Series balance creates for an effortless user experience. Equipped with the unique Mono-Metal Tuning Fork Sensor (MMTS), this balance series brings remarkable response time and exceptional stability to any setting.
User Friendly:
Functions that are easy to use and understand come standard with the TP Series balance. Enhance productivity with modes such as unit counting and percentage weighing. Adapt to any type of standard with the ability to weigh in 12 different measurement units.
Compact:
The compact and manageable size of the TP Series balance is suitable for even the most limited of space. A footprint smaller than a sheet of paper makes it perfect for crowded work environments.
Responsive:
Each balance performs with incredible sensitivity and stability by relying on its dynamic tuning fork sensor. Plug in and go without waiting for stabilization.
- External weight calibration
- Large, 16.5 mm-high backlit liquid crystal display (LCD)
- Selectable modes: Weight, Unit, Count and Percentage
- 12 units of measurement
- Mono-metal tuning fork sensor (MMTS) provides quick response and stability
- 20-step bar graph display
- 115 VAC adapter included (230 VAC optional)
- One part in 620,000 resolution
- RS-232 bidirectional
- Plastic housing on models <1,000 g, plastic top and die cast bottom on models >1,000
- Optional: Rechargeable battery
- Optional: Under-hook weighing
Printers

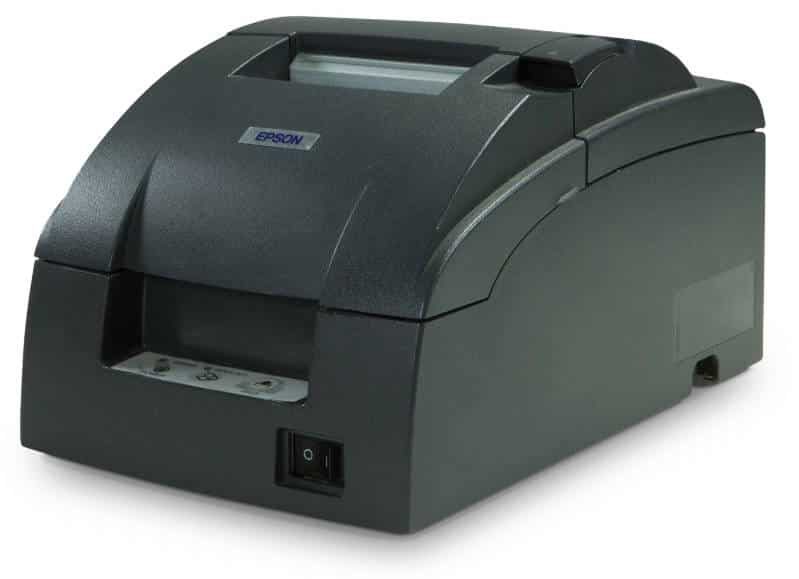

Epson TM-U220 Roll-Tape Printer
The Epson TM-U220 is a high-speed printing solution with a nine-pin dot matrix printhead and print speeds up to six lines per second.
- Nine-pin dot matrix print head
- High-speed 4.7 to 6.0 lines per second printing
- Drop-in paper set and auto paper loading
- Automatically transmits changes in printer status
- RS-232
- Optional connect-it cartridges for parallel, USB, 10 Base-T
- Uses MI88D mechanism

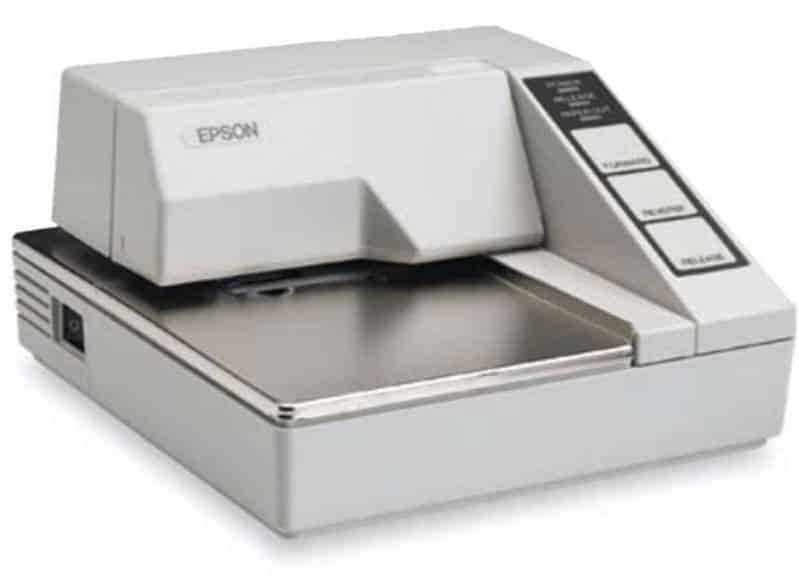

Epson TM-U295 Ticket Printer
Simple and Efficient Ticket Printer
The Epson TM-U295 is a sound and economical choice for simple ticket printing needs. This model features four-part multicopy ticket printing for convenient printing of small designs.
- High-speed 1.9 to 2.3 lines per second printing
- Single copy or up to four-part multicopy ticket printing
- Functions in slave capacity, printing information sent via RS-232

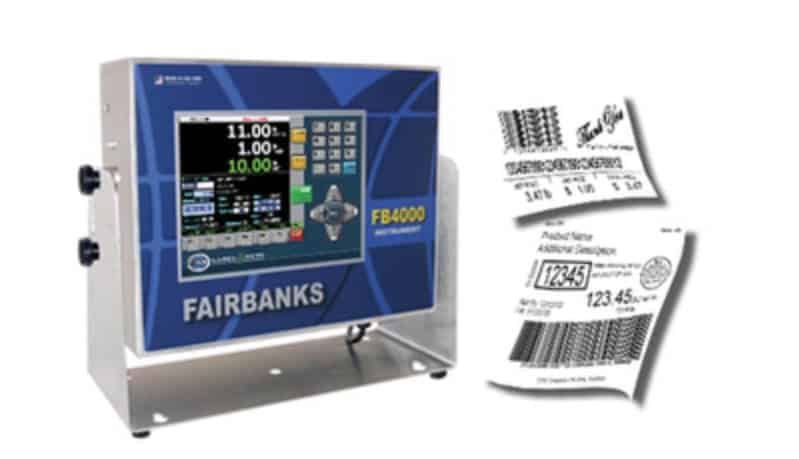

Fairbanks Scales LabelBank / DataBank
Fairbanks Scales LabelBank / DataBank software is designed for the advanced features of the Fairbanks Scales FB4000 Solution Series instrument. Fairbanks Scales LabelBank / DataBank have an easy-to-read interface, color coded indications, and visibility of important product information. Fairbanks Scales LabelBank / DataBank is your tool for collecting data and addressing critical labeling applications.
Fairbanks Scales Ledger for DataBank is an optional WEB reporting tool providing an intuitive user interface to get to the information that your business requires and demands. Fairbanks Scales Ledger for DataBank is a WEB-based, interactive, access to data collected by Fairbanks Scales DataBank software. It is a tool to understanding key business processes by effectively converting scale data into critical information that is needed for your business to operate and succeed.
Railroad Scales

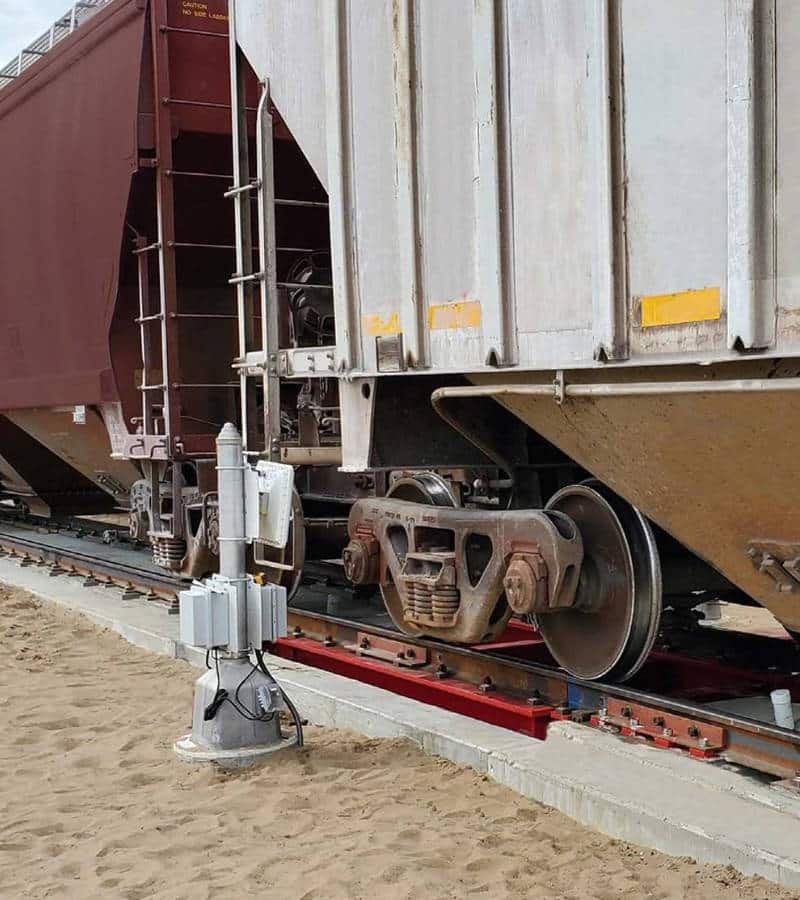

Fairbanks 2000 SERIES
Fairbanks’ 2000 Series is a pit-free, aboveground track scale that economically integrates with standard U.S. rail configurations. Safe, heavy-duty and built to last, the advanced design of this scale minimizes the length of scale needed to weigh rail cars.
The 2000 Series features easy, cost-effective installation, advanced modular construction, hermetically sealed 110K rocker column load cells, and a Cooper E-80 design rating. Best of all, this scale is virtually maintenance-free after installation.
This scale meets all requirements of the Association of American Railroads and National Institute of Standards and Technology Handbook 44, and features Fairbanks’ exclusive Intalogix®Technology for advanced load cell performance and protection.
Reduced construction costs
The 2000 Series’ streamline design drastically reduces expenses associated with building a traditional full-length rail scale. Set just below the rail, the 18 ½” end-wall height accommodates the 2000 Series’ low profile and provides ample access to load cells and electronics without the need for an expensive pit. Additionally, the modular nature of the 2000 Series minimizes the size of crane required for installation.
Intalogix® Technology
Real world problems, such as lightning, can wreak havoc on your scale. Fairbanks has developed an industry-leading technology, Intalogix, to protect your scale from mother nature. Intalogix is a standard feature on the 2000 Series Railroad Track Scale. In addition to the highest level of protection against lightning strikes and power surges, Intalogix also has the capability to digitally isolate individual load cells and instantly notify operators if a problem arises.

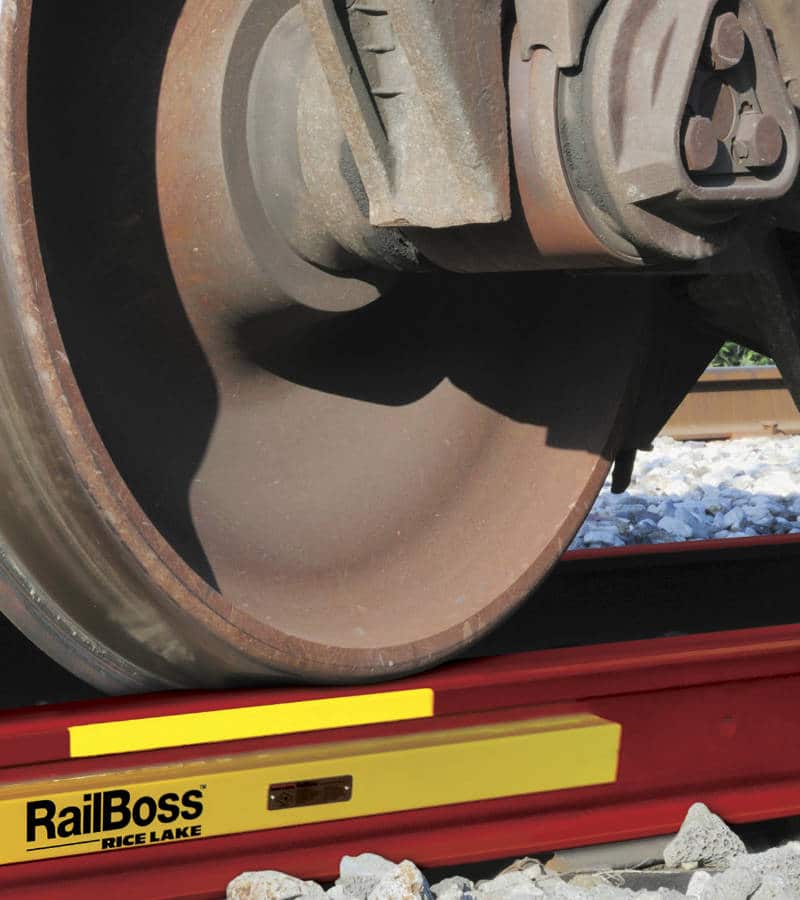

RailBoss®
RailBoss® Rail Scales Fit Your Yard and Budget
Running balanced rail cars at or near capacity assures the greatest efficiency and profit. RailBoss rail scale eliminates the guesswork of volumetric measuring and variable tare weights. With RailBoss, underloading, incorrect billing, overloading, rejection and fines can all be avoided.
RailBoss rail scales provide the accuracy needed for checkweighing, process monitoring, filling, record keeping and maintaining safe loads. Trains not being weighed can move across the scale at normal line speed without affecting the scale.
RailBoss’ simple and straightforward design also makes it a seamless replacement for similar rail scales.
Robust Rail Car Weighing
RailBoss is a series of five-feet, 10-inch rail sections fitted with strain gauges to accurately measure the gross weight of rail cars. Each section of rail is an individual weighbridge for a single wheel. The system provides total car weight plus weight readings for individual rail trucks. Rail cars can be positioned in various ways: track mobile, tug motors, locomotives or other convenient means. Once the rail car is in position, Rice Lake’s weight indicator displays the weight. Choose the 1280 Enterprise™ Series for large, color touchscreen convenience or the 920i® for standard operation.
RailBoss rail scale is designed for rail cars with five-feet, nine-inch to five-feet, 11-inch truck centers and can be installed in any location that has straight and level track for at least three car lengths. RailBoss sections are bolted onto existing track and ties, minimizing installation time and disruption of rail traffic. The standard RailBoss utilizes 90RA, 115RE or 132RE rail. Custom rail sizes are also available.
- 80,000 lb axle capacity
- 320,000 lb full scale capacity
- 40,000 lb rail section capacity
- 90 RA, 100 ARA-A, 115 RE, 132 RE, 133 RE or 136 RE rail sections
- 5 ft 10 in rail sections, pre-drilled for joint bars
- Quick-disconnect cable connection with MS style connector
Full Draft Package Includes:
- Eight 5 ft 10 in rail sections
- 30 ft of connecting cable per rail section
- Pre-drilled joint bars with connection hardware
- Two Rice Lake junction boxes with transient protection
- 30 ft of homerun cable
Double Draft Package Includes:
- Four 5 ft 10 in rail sections
- 30 ft of connection cable per rail section
- Pre-drilled join bars with connection hardware
- One Rice Lake junction box with transient protection
- 30 ft of homerun cable
Optional Features
- Custom rail sizes are available
- 1280 Enterprise™ Series indicator with RailBoss software for full-draft or double-draft applications*
- 920i® indicator with RailBoss software for full-draft or double-draft applications*
- Custom cable lengths
*Non-Legal for Trade
Calibration Unit Standard Features
- 482 Legend Series indicator
- Attachment hardware for 90 RA, 115RE and 132RE rail

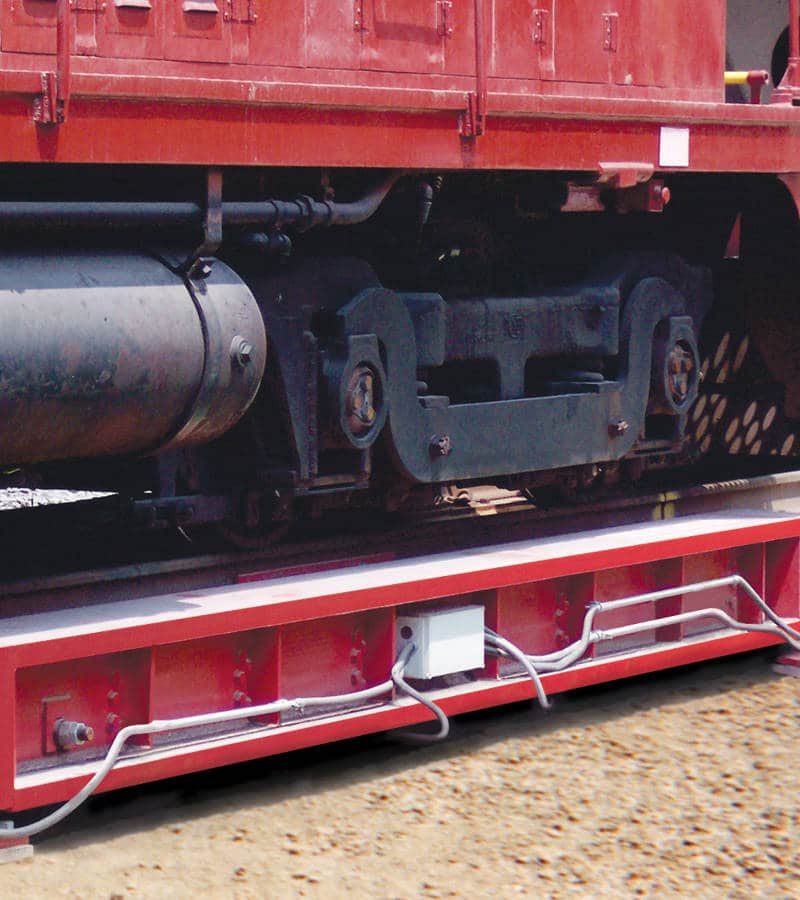

SURVIVOR® PL Rail Scale
Low Profile, Modular Installation Rail Scale
The SURVIVOR PL rail scale’s low-profile design eliminates the need for a pit, saving time and costs on construction and pit maintenance. A highly-accurate, full- or double-draft weighing solution for Legal for Trade rail applications, the SURVIVOR PL Class IIIL rail scale meets NIST, AAR and AREMA requirements. The SURVIVOR PL is manufactured with more steel content than competitive models and engineered to stand alone as the industry’s highest performing, longest-lasting rail scale.
Flexible Configuration Options
Numerous scale platform lengths allow the SURVIOR PL railroad scale to offer a superior range of scale configurations. These configuration options make rail car weighing adaptable to different car sizes, saving space and costs associated with extra materials.
- 100,000 lb capacity compression load cells
- Standard platforms sizes: 12 ft 6 in; 15 ft; 18 ft; 25 ft
- 7 ft 8 in platform width
- 18.5 in profile from top of pier to base of rail
- 24.5 in profile from top of pier to top of rail
- Surge protection kit
- Built-in conduit runs
- 1/4 in bolted checkered steel top plate
- Designed for 115 lb or 132 lb rail (other sizes available)
- Configurations: Single, Single/Single, Single/Double, Double, Double/Double
- Additional Options
- Custom platform sizes and configurations
- Concrete approach
- T-beam approach hardware
- Rail plate approach hardware
- Intermediate section hardware
- Flush deck design
SURVIVOR® RT Rail Scale
SURVIVOR railroad track scales incorporate Rice Lake’s best-in-class weigh-bridge design to create a rugged, accurate, heavy-duty weighing system. Used in static weighing operations, the SURVIVOR RT Pit Type railroad track scale excels in high-accuracy, Legal for Trade weighing and meets AREMA and Cooper E-80 design specifications.
The SURVIVOR RT is a pit-type, rail/truck combination scale. Perfect for weighing a variety of car sizes, the SURVIVOR RT is capable of weighing rail cars as well as trucks. This scale is ideal for bulk cement, aggregate, grain, scrap metal and chemical applications. Cars can be positioned anywhere on the scale and a wide range of platform sizes and capacities provide accurate weighments.
- 200,00 lb capacity compression load cells
- Standard platform sizes: 60 ft; 66 ft; 70 ft; 72 ft; 80 ft; 90 ft; 100 ft
- 4 ft 9 in profile
- Factory welded modules
- Steel or concrete deck
- Lightning and surge suppression kit
- In-bridge conduit runs
- 7 in reinforced concrete deck design
- (1) 24 in square manhole ring and cover
- Fully assembled factory welded modules
- Options
- Custom platform sizes and configurations
- Concrete approach hardware
- Additional manholes
- Grain dumps
- T-beam approach hardware
- Rail trough channel
Remote Weight Displays

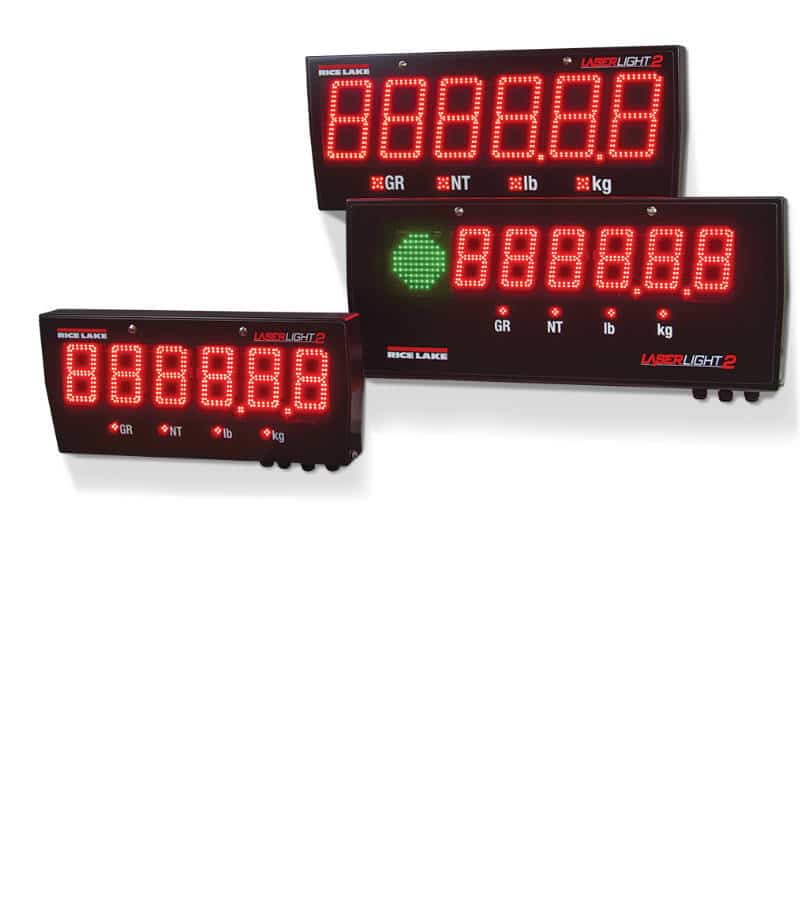

LaserLight2 Remote Display
Prominently display weight, numeric data and messages with the LaserLight2 remote display. A super-bright LED display with non-glare lens provides sharp seven-segment, six-digit characters that are easy to read. Never lose visibility in dark conditions or experience wash-out in direct sunlight. Simply power up a LaserLight2 remote display in your application and the benefits are clearly visible.
A redesigned enclosure provides easy access to internal components. The front panel swings open for convenient setup and service, yet is securely held in place. The weather-tight, IP66 rated enclosure provides superior protection for worry-free daily use. The external keypad makes navigating configuration options safe and easy with up, down, left and right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.
Available in four-inch or six-inch character sizes, LaserLight2 remote displays include annunciators for gross, net, pounds, and kilograms. For added convenience, time and date is also included.
- Available with a 4-in or 6-in display
- Six high-intensity red digits (double-row discrete LED)
- Time and date displayed when scale is empty
- Auto Learn mode of communication protocols
- Hold displayed weight (demand input)
- Software selectable standstill mode for no updates while in motion
- Durable weathertight IP66 enclosure
- Adjustable daylight/night intensity
- Non-glare contrast filtered lens
- Mirror (reverse image) function
- RS-232, 20 mA and RS-485 communications
- Auto sensing 115/230 VAC power supply
- PEMs for VESA flat-wall mount or side-mounting flange
- Polyethylene breather vent inhibits internal moisture buildup
- Red, green and arrow lights in stop/go version
Scale Indicators

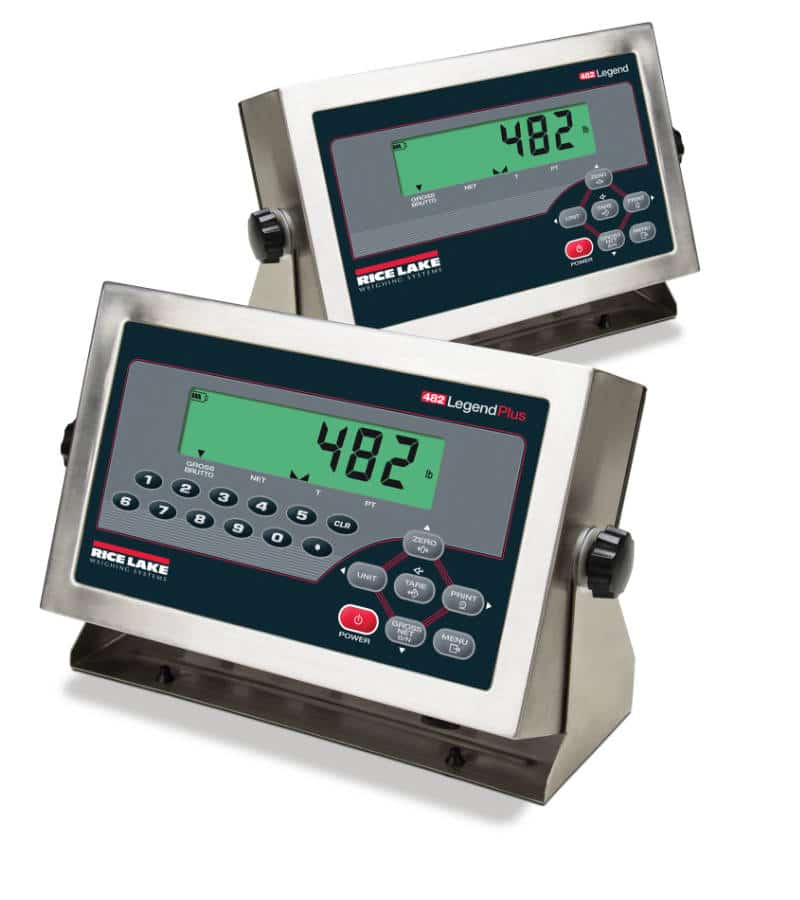

480/482 Legend™ Series Digital Weight Indicator
With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.
Advanced circuitry withstands electrical noise, power disturbances and transient spikes that are common to industrial applications. The Legend Series’ six-button tactile keypad allows for quick navigation and programming. The Legend Plus Series offers a full numeric keypad.
The Legend Series offers a valuable solution for a variety of applications, from basic weighing to batching. Built-in gross/net modes provide quick flexibility for everyday needs. Also utilize the 480’s custom ticket printing to modify
- LED display, 0.8 in (20 mm), six-digit, seven-segment
- Time and date, battery backed
- Local/remote operation
- Numeric keypad (480/482 Plus)
- Keyed entries for setpoint values (480/482 Plus)
- Two independent serial ports, RS-232 and 20 mA
- NEMA Type 4X/IP66 stainless steel washdown enclosure
- Programmable ticket formats for gross, net, accumulator and setpoints
- Five continuous stream formats
- Adapter filter or rolling average filter
- Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
- Eight setpoints, sequenced batch engine
- Configurable with Revolution® software
1280 Enterprise™ Series Programmable Weight Indicator and Controller
With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.
Advanced circuitry withstands electrical noise, power disturbances and transient spikes that are common to industrial applications. The Legend Series’ six-button tactile keypad allows for quick navigation and programming. The Legend Plus Series offers a full numeric keypad.
The Legend Series offers a valuable solution for a variety of applications, from basic weighing to batching. Built-in gross/net modes provide quick flexibility for everyday needs. Also utilize the 480’s custom ticket printing to modify gross, net and setpoint tokens for a tailored print format.
- Customizable color touchscreen with graphical user interface
- User-defined softkeys, icons and graphics
- Tactile keypad for scale operations, numeric entry and navigation
- On-screen keyboard available during entry mode (or external keyboard)
- Built-in web server for remote access, systems integration and data monitoring
- Multi-language operation and text entry
- Supports eight scales within five different kinds:
- Analog load cell, multi-range/interval weighing
- Total scale summing
- Serial input scales
- iQUBE²™ scales
- Program scales
- Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
- iRite™ Programming Software
- Five built-in applications: Truck In/Out, recipe storage, filling/dosing, counting, checkweighing
- Customizable user programs with event-based functions
- 150 built-in functions for common processes and data tables
- Customize and transfer data via email, FTP server and networked printers
- Display data with line charts or bar graphs
- iRite reporting of iQUBE² alerts
- Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
- Alibi memory captures serial port transmissions
- Four configurable data-stream formats for PC, printers and remote displays
- 100 setpoints, 18 configurable setpoint types
- Eight digital I/O for control and pulse count
- Three different enclosure types: universal with tilt stand, panel mount and wall mount

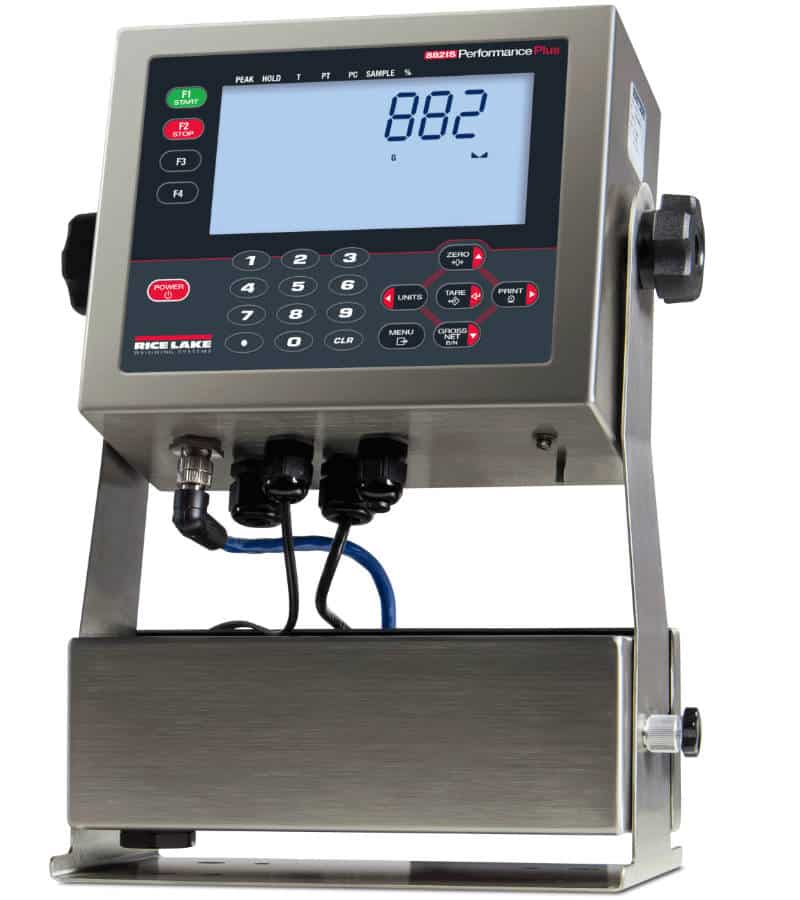

882IS Intrinsically Safe Digital Weight Indicator
The intrinsically safe, auto-ranging power supply enables wiring to a single AC conduit line and seal from the safe area. An FM approved, rechargeable battery is also available for isolated power or movable applications. The 882IS utilizes a backlit LCD display to maintain brilliant visibility for user-friendly operation, even in dimly lit areas. Its stainless steel enclosure provides superior protection from the elements.
ENHANCED CONNECTIVITY
Expand flexibility with an optional safe area I/O Module, featuring a serial port, Ethernet TCP/IP and optional analog output or fieldbus cards for communication with printers, computers and other peripherals. A duplex fiber-optic port allows for electrically-isolated communication with the I/O Module. To complete the IS entity approved system, Rice Lake offers FM/ATEX-approved load cells and junction boxes that interface with the 882IS indicator.
- 0.8in, seven-digit, seven-segment LCD display with white LED backlight
- Stainless steel IP66 enclosure
- T4 temperature rating
- Automatic zero and span temperature compensation
- Excitation for four 350-ohm or eight 700-ohm load cells
- Tilt stand
- Numeric keypad (882IS Plus only)
- Duplex fiber optic interface
- Power ON/OFF; battery save mode
- I/O module option: one serial port, optional analog output, optional fieldbus cards, Ethernet TCP/IP
- Time & date (requires I/O module)
- FM Entity Approved for use in hazardous locations per Rice Lake Weighing Systems control drawing file number 180948

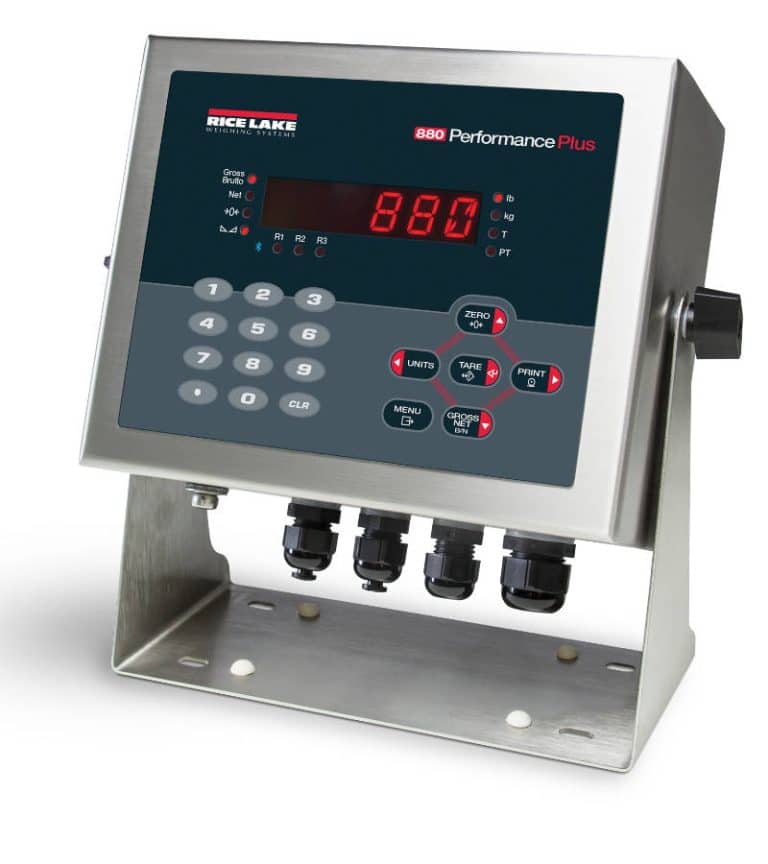

880 Performance™ Series Digital Weight Indicator and Controller
A Weight Indicator with a Range of Connectivity
Designed with the user process in mind and built for communication, Rice Lake’s Performance™ Series weight indicators/controllers are packed with power, yet simple in design. Intuitive multifunction menu keys allow navigation in any application and the NEMA Type 4X/IP69K-rated gasket effectively keeps internal components out of harm’s way. Twenty time- and weight-based setpoints provide ultra responsiveness to handle any process control requirement. For customized operation, use Rice Lake’s intuitive iRite software to program functionality specific to the application. The innovative 880 and 880 Plus also accommodate a wide range of connectivity—from USB and RS-232/ RS-485 to Ethernet TCP/IP.
Install an option card for additional fieldbus compatibility, analog output, relay board, dual serial outputs or 24-channel digital inputs/outputs. With two different enclosure types to choose from, Rice Lake’s 880 Performance Series exceeds your expectations wherever you need it.
880 Panel Mount
The sleek design of the 880 not only looks great, it also fits great into existing and new panels alike. At just under five inches deep, the efficiently designed enclosure fits easily into compact spaces with DIN-rail clips to make mounting quick and effortless. The 880’s modular design enables the display to be remotely mounted, especially useful for instances when it is inconvenient to mount the controller on a conventional panel.
880 Plus Universal Enclosure
Equipped with a universal mount, the 880 Plus delivers all of the powerful features of the 880 when a panel mount isn’t necessary. The numeric keypad simplifies the user experience, making operations more convenient and flexible.
- LED display, 0.56 in (14 mm), six-digit, 14-segment
- RS-232 or RS-485 serial port
- USB device port connects directly to a PC
- Ethernet TCP/IP polled or continuous
- AC or DC models
- Built-in DIN-rail clips on controller box (panel mount)
- Display and controller can be separated up to 250 ft (panel mount)
- Hardware slot for one option card
- Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
- Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
- 20 setpoints with latched batch engine or unlatched outputs
- Four onboard digital I/O channels
- Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and setpoints
- Local/remote operation
- Multi-range or multi-interval weighing
- Filter settings for light, medium and heavy noise
- Options/Accessories
- Analog output
- Relay board
- Fieldbus connectivity
- Dual serial output (v4.00 and newer)
- 24-channel digital I/O (v4.00 and newer)
- Truck in/out program for 100 vehicle IDs
- Adapter plate for converting 310 and 520 panel mounts
- Panel mount kit for universal enclosure

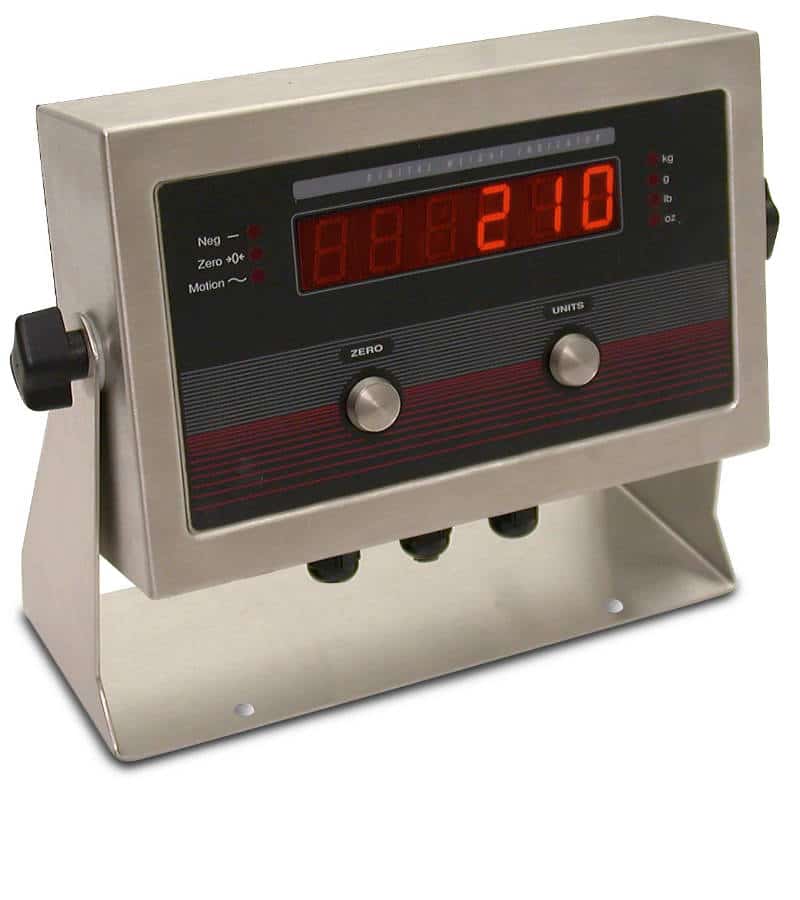

IQ plus® 210 Digital Weight Indicator
IQ plus 210 digital weight indicator is known for its performance with the IQ plus 2100 bench scale, but it’s the ideal replacement indicator for any bench scale in portioning, ingredient weighing and general industrial applications. It’s large, vibrant display rivals any other in its class as well as the ability to show pounds and ounces simultaneously.
Its rugged design includes a NEMA Type 4X stainless steel enclosure that protects electronics from frequent washdown, and sealed, stainless steel buttons resist damage in abusive environments.
It’s so easy to use—all operations are controlled with just two buttons, zero and units. For ultimate simplicity, the units button can be disabled, virtually eliminating operator errors. Auto or stream print modes are standard, or mount an optional print button on the top of the enclosure for connection to a printer or PC. Configuration can be completed through the indicator’s front panel, EDP port or from a personal computer with Revolution™ software.
- Piezo switch technology with stainless steel buttons (zero and units)
- LED display, 0.8 in, 6-digit, 7-segment
- NEMA Type 4X stainless steel enclosure
- Status annunciators: lb, kg, oz, g, negative, motion, center of zero
- Displays units in decimals lb, kg, oz, lb and oz and grams
- 1 full duplex RS-232 port
- 2 digital inputs for remote zero, print and units
- PreVent™ breather vent
- Configurable with Revolution® software
